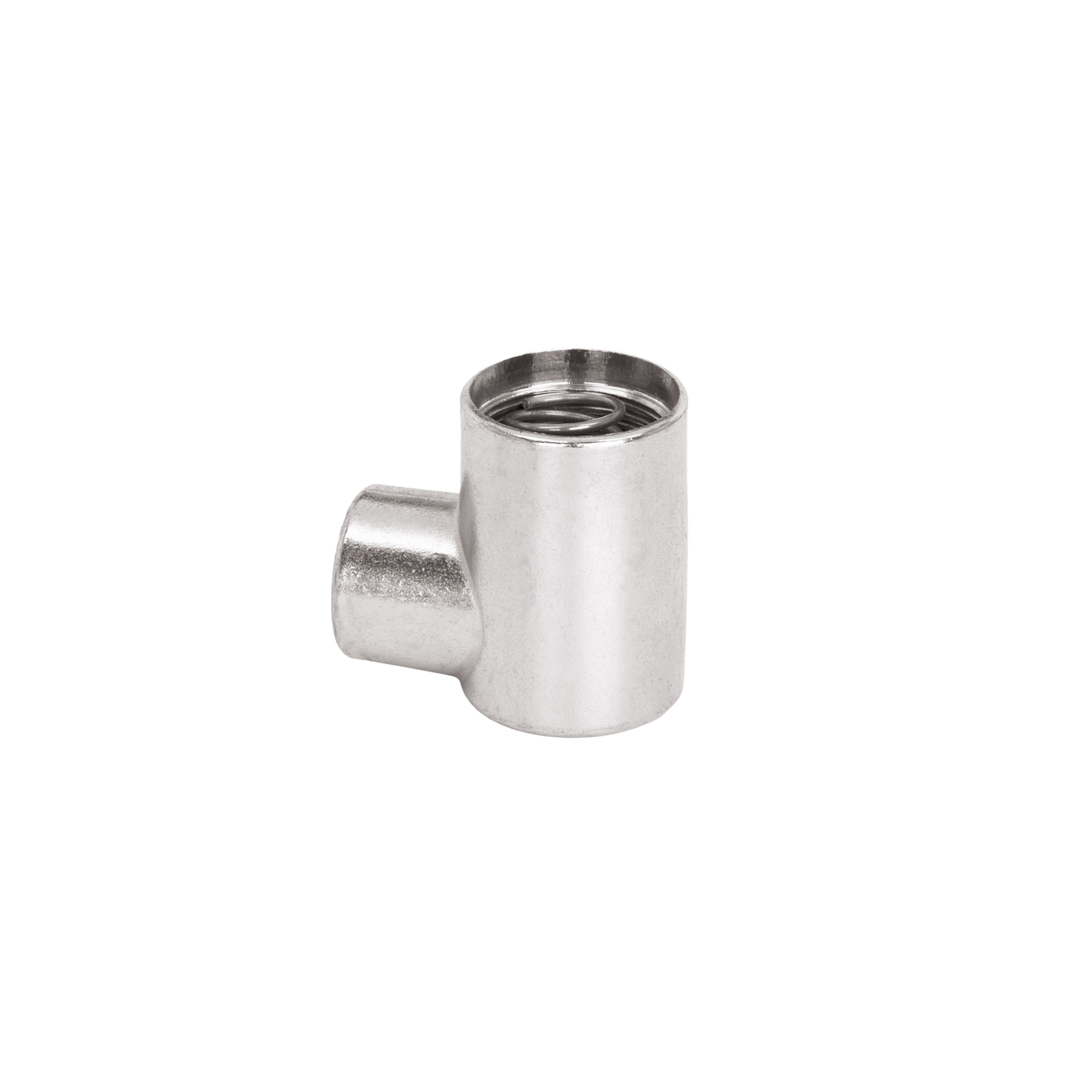

1/2” NPT 90° Elbow Inlet

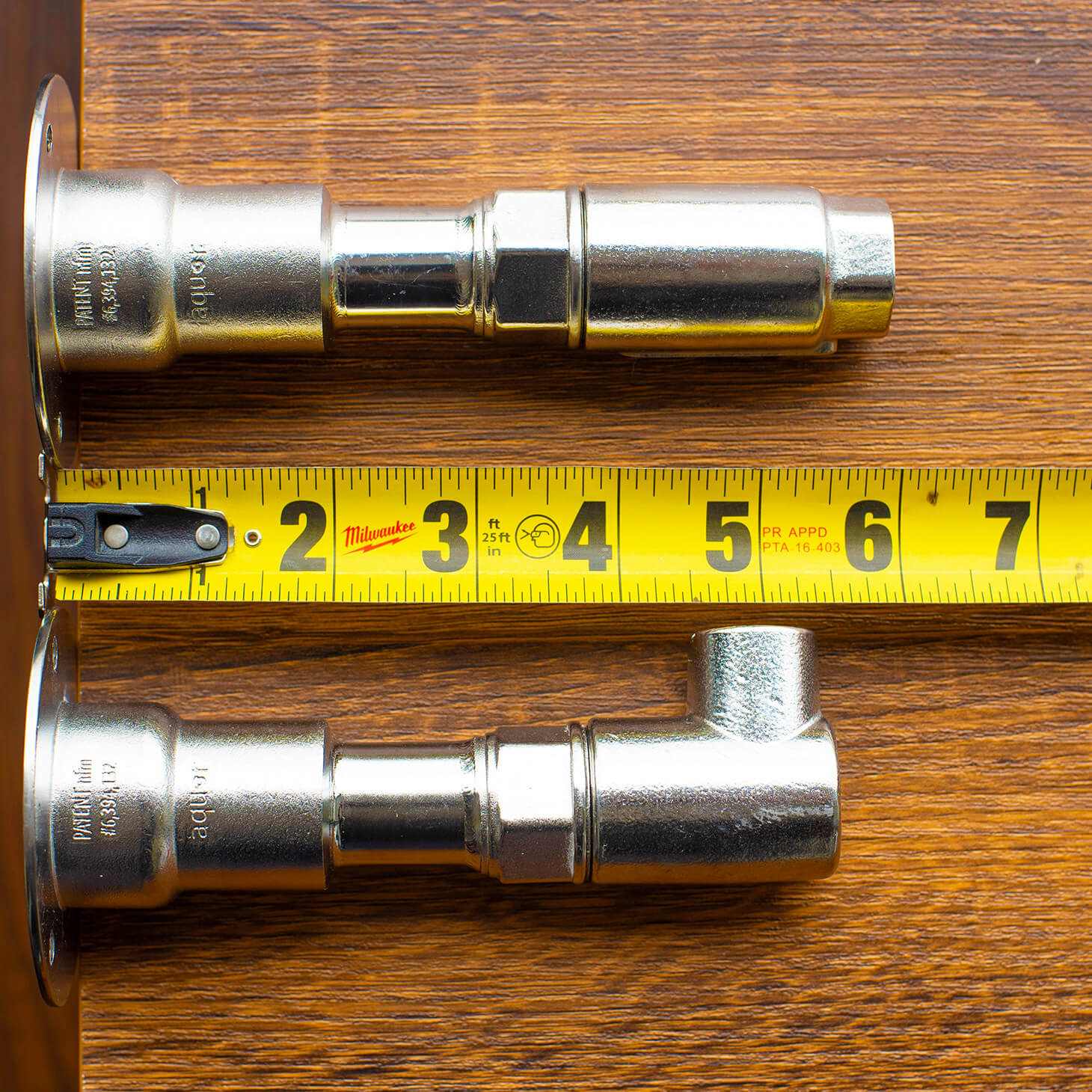

Replaces standard straight 1/2" NPT inlet. For use with any plumbing—NPT is the most common thread type. Shortens overall length of hydrant by 1/2″. Can be positioned in any direction due to unique O-ring seal. Tighten fully, then back off to desired placement (up to 360°, 1 rotation). Precision-cast 316L stainless steel. Includes stainless steel valve reset spring.

Not compatible with Ground Hydrants or Hot+Cold Hydrant.



SKU: INL-EL-12-NPT
Regular price$19.79$15.83 20% off
Unit price
per

Payment installments viaavailable in checkout

Limited Lifetime Warranty

Free Shipping in US over $200

Est. Delivery in 3-10 Business Days

As Easy as 1, 2, 3

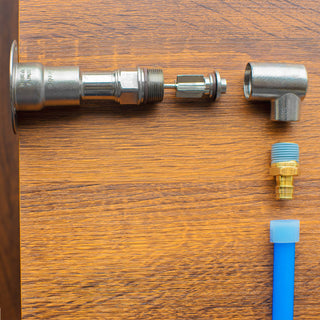

1: Remove Existing Inlet

Remove existing inlet by unscrewing counterclockwise. Ensure the O-ring on the Hydrant body is properly seated.

Note: DO NOT use Teflon tape on hydrant body threads. This may cause leaks. Only use Teflon tape on plumbing connection (fitting) threads.

2: Hand Tighten New Inlet

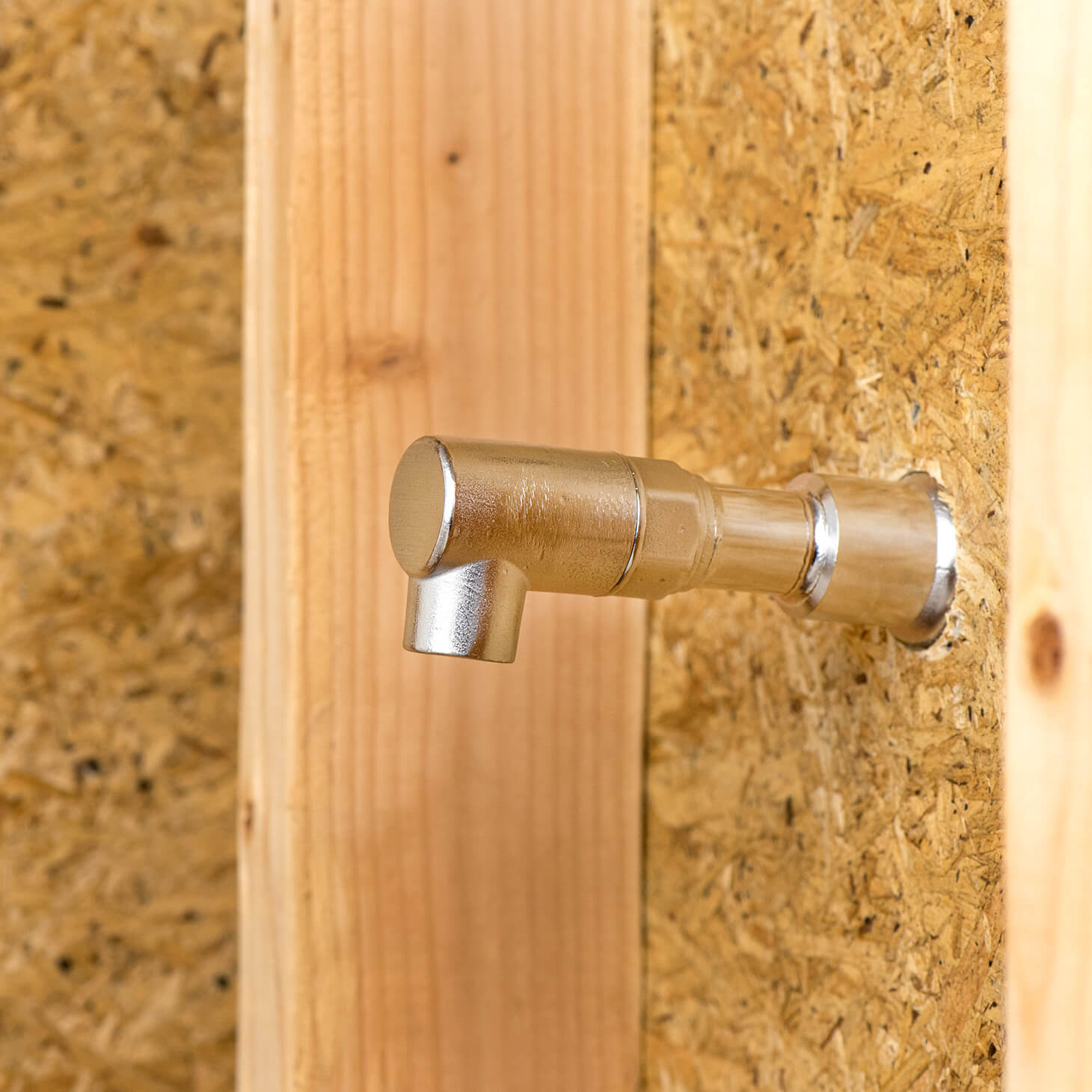

Hand tighten new inlet onto Hydrant body by threading clockwise. For elbow inlets, rotate counterclockwise until the inlet is positioned in the correct direction for installation. The O-ring will keep a watertight seal up to 360° from full lock, up to 250 PSI.

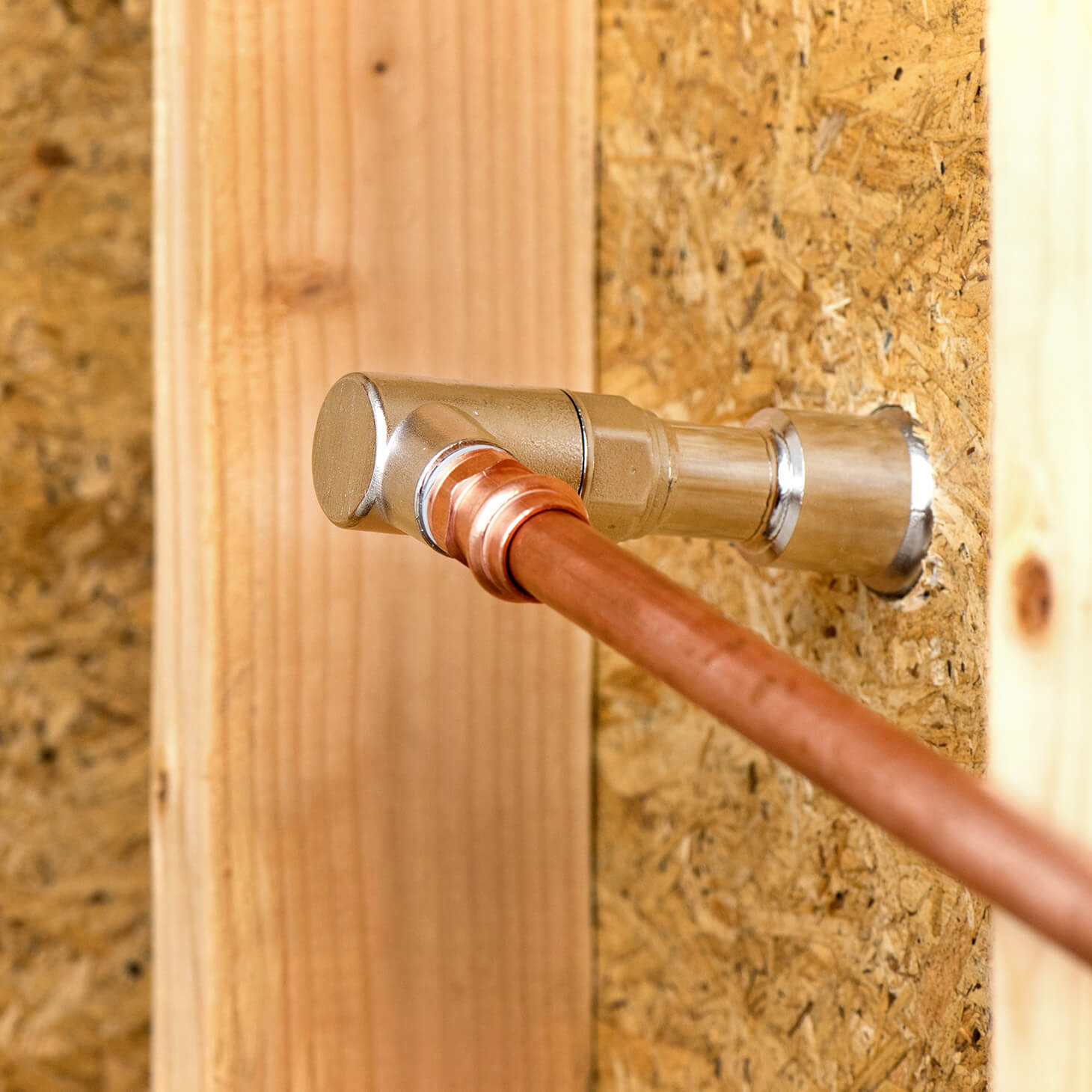

3: Connect to Plumbing

Connect to plumbing, then check for leaks and test Hydrant operation.

For PEX joints, wait 10 minutes for it to shrink down and set before turning on the water.

If possible, use a PEX expansion loop for easy plumbing maintenance down the road.

Make Sure You Have the Products You Need for an Easier Hydrant Install

  • Model
  • Pipe size
  • Connection type
  • Shape
  • Specification
  • Plumbing compatibility
    • Current Product
      A product shot of the half inch NPT elbow inlet.

      1/2” NPT 90° Elbow Inlet

    • 1/2"
    • NPT (f)
    • Elbow
    • ANSI B1.20.1
    • All Plumbing (adapter may be needed)
    • A product shot of the three-quarters inch NPT inlet.

      3/4” NPT Straight Inlet

      Shop Now
    • 3/4"
    • NPT (m)
    • Straight
    • ANSI B1.20.1
    • All Plumbing (adapter may be needed)
    • A product shot of the half inch elbow PEX expansion inlet.

      1/2” PEX Expansion 90° Elbow Inlet

      Shop Now
    • 1/2"
    • ProPEX
    • Elbow
    • ASTM F1960
    • PEX
    • A product shot of the half inch straight PEX expansion inlet.

      1/2” PEX Expansion Inlet

      Shop Now
    • 1/2"
    • ProPEX
    • Straight
    • ASTM F1960
    • PEX
    • A product shot of the three-fourths inch straight PEX expansion inlet.

      3/4” PEX Expansion Inlet

      Shop Now
    • 3/4"
    • ProPEX
    • Straight
    • ASTM F1960
    • PEX
    • A product shot of the half inch elbow PEX crimp inlet.

      1/2” PEX Crimp 90° Elbow Inlet

      Shop Now
    • 1/2"
    • PEX Clamp/Crimp
    • Elbow
    • ASTM F1807
    • PEX
    • A product shot of the half inch straight PEX crimp inlet.

      1/2” PEX Crimp Inlet

      Shop Now
    • 1/2"
    • PEX Clamp/Crimp
    • Straight
    • ASTM F1807
    • PEX
